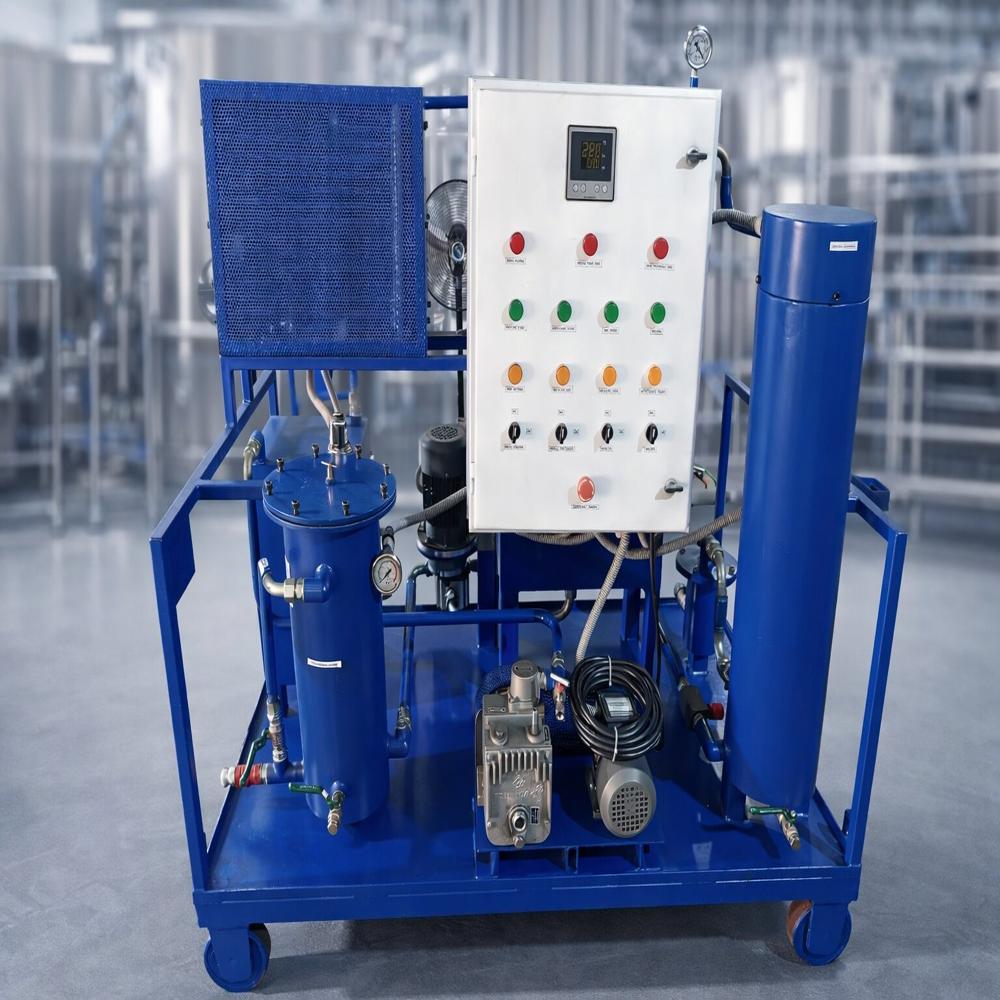

TURBINE OIL MACHINE

TURBINE OIL MACHINE Specification

Product Type
Turbine Oil Machine

General Use
Filtration and purification of turbine oil

Material
Mild Steel/Alloy Steel

Type
Mobile Oil Filtration Unit

Capacity
300 to 6000 Liters/Hour

Weight (kg)
Approx. 170-220 kg (varies by capacity)

Computerized
No

Automatic
Yes

Ozone Generator
Not Included

UV Sterilizer
Not Included

Control System
Electric Control Panel

Filter Bag No.
1 or 2 (based on model)

Filter Area
Approx. 0.5-2 m2

Flow Rate
Up to 6000 LPH

Voltage
220V-415V, 50/60 Hz

Motor
0.75kW - 3kW, 3 Phase

Dimension (L*W*H)
Approx. 800 x 600 x 1200 mm

Feature
Portable, Efficient, Durable Construction

Color
Blue

Maximum Operating Pressure
5-7 bar

Inlet/Outlet Connection
1" to 2" BSP/NPT

Cooling System
Air Cooled (Optional)

Suitable Oil Types
Turbine, Hydraulic, Transformer Oils

Wheel Type
Heavy-Duty Swivel Caster Wheels

Filtration Precision
3 - 5 Micron

Pump Type
Gear/Multi-Stage Pump

Mobility
Movable Trolley Mounted

Pre-filter Element
Replaceable Stainless Steel or Fiber

Noise Level
<70 dB(A)

About TURBINE OIL MACHINE

Since 2010, we have been engaged in manufacturing, exporting and supplying Lube Oil Filtration Machine to our valuable clients. The offered machine is widely used in industries like petroleum, oil-refining, etc., for efficient filtration. The provided machine is manufactured using premium quality components under the surveillance of our adept professionals. This Lube Oil Filtration Machine can be bought from us at market leading price.

Key points:

Produces very less noise
Long working life
Hassle free operation
Standard specifications

High-Precision Filtration Performance

Engineered to deliver outstanding filtration precision ranging from 3 to 5 microns, the Turbine Oil Machine efficiently removes contaminants from turbine, hydraulic, and transformer oils. Its multi-stage or gear pump ensures reliable operation, making it essential for maintaining critical equipment and prolonging oil life while reducing maintenance costs.

Portable and Durable Design

The trolley-mounted structure, fitted with heavy-duty swivel caster wheels, makes this machine highly mobile and suitable for on-site oil purification tasks. Built from mild or alloy steel, the unit is robust enough to withstand frequent industrial use while ensuring operational convenience and long-term durability.

Efficient and User-Friendly Operation

Fitted with an electric control panel for automated processes, the oil filtration unit is simple to operate. Replaceable stainless steel or fiber pre-filters enable swift maintenance, while an optional air-cooled system ensures optimal performance even under demanding conditions. Its low noise level provides comfort during prolonged operations.

FAQ's of TURBINE OIL MACHINE:

Q: How does the Turbine Oil Machine achieve high filtration precision?

A: The machine uses replaceable stainless steel or fiber pre-filter elements and precision filters rated at 3-5 microns, effectively removing fine particulates and contaminants from turbine, hydraulic, or transformer oils.

Q: What types of oils can be processed with this filtration unit?

A: This machine is suitable for processing turbine oil, hydraulic oil, and transformer oil, making it ideal for various industrial applications requiring clean and purified lubricants.

Q: When is it recommended to use this machine for oil purification?

A: It is best used during routine or scheduled equipment maintenance, oil changes, or whenever high purity levels are required to ensure optimal machinery performance and longevity.

Q: Where can the Turbine Oil Machine be used?

A: Due to its portable, trolley-mounted configuration and robust construction, the unit is suitable for on-site oil filtration in power plants, manufacturing facilities, and maintenance workshops across India.

Q: What is the process for operating the machine?

A: Operation involves connecting inlet/outlet hoses to 1''-2'' BSP/NPT fittings, switching on the electric control panel for automatic filtration, and checking filter elements periodically for replacement as needed.

Q: What benefits does regular use of this oil filtration unit provide?

A: Regular filtration extends equipment and oil service life, reduces downtime and maintenance costs, and enhances efficiency by maintaining the purity of lubricating oils.
